Core product line · Winch rope

UHMWPE Winch Rope — OEM & Custom Manufacturing

12-strand braided UHMWPE winch rope manufactured to your specification: diameter, length, coating and load capacity. Replaces steel winch cable — light, torque-free, floats on water, and sized to your winch capacity. Sold as OEM or custom-manufactured to your requirements.

Request a Quote Off-Road Recovery Kit
Red UHMWPE 12-strand winch rope installed on a vehicle winch, with aluminium hawse fairlead and black protective sleeve at the hook end
Red UHMWPE winch rope fitted to a vehicle winch through an aluminium hawse fairlead. PU coating gives drum grip and abrasion resistance; the black sleeve protects the hook-end from heat and wear.

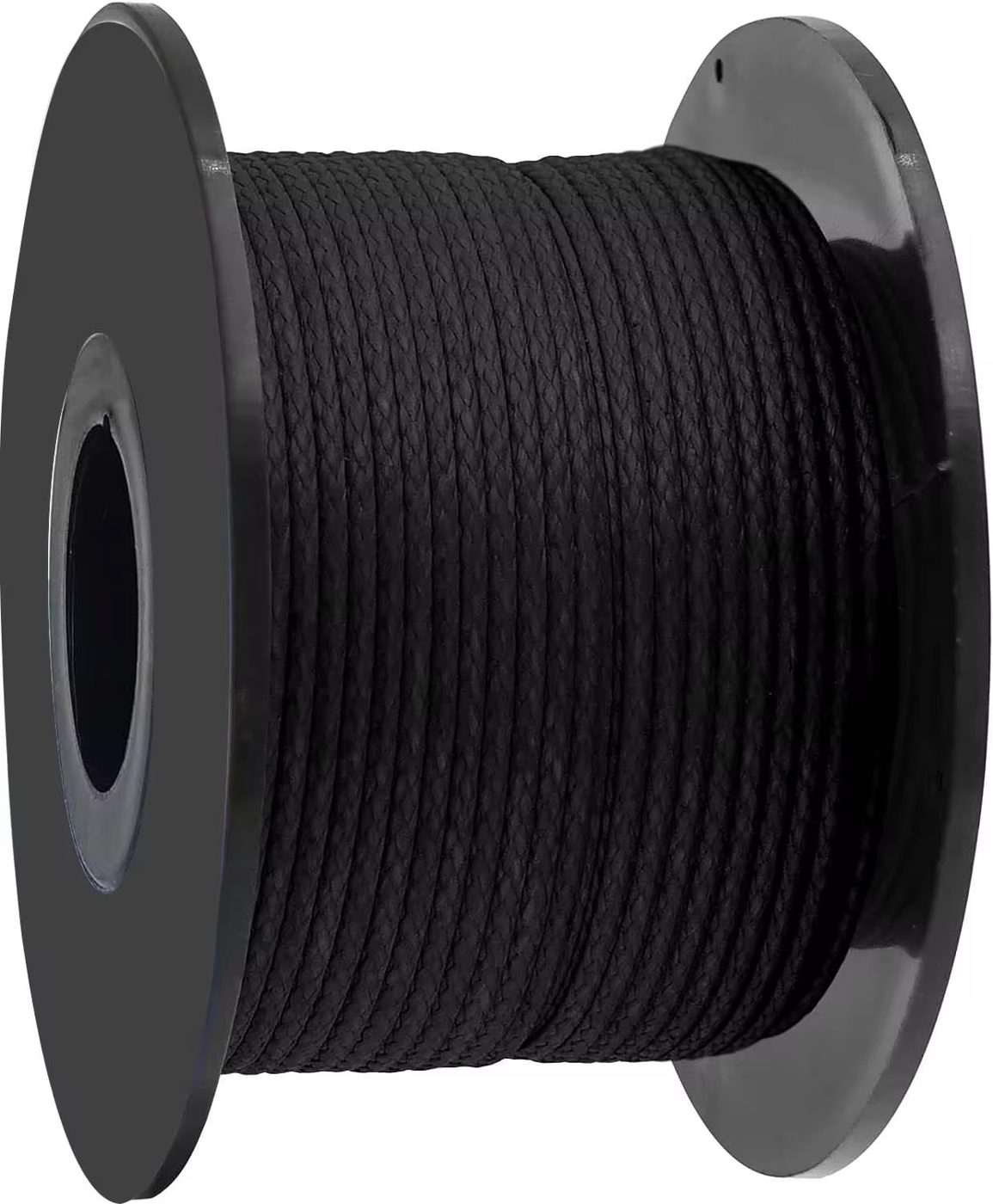

Black UHMWPE 12-strand winch rope spooled on a black plastic factory spool, full spool side view
Black 12-strand UHMWPE rope on its factory spool. Spool format and diameter are confirmed per RFQ — the quoted specification is the reference for the item offered.

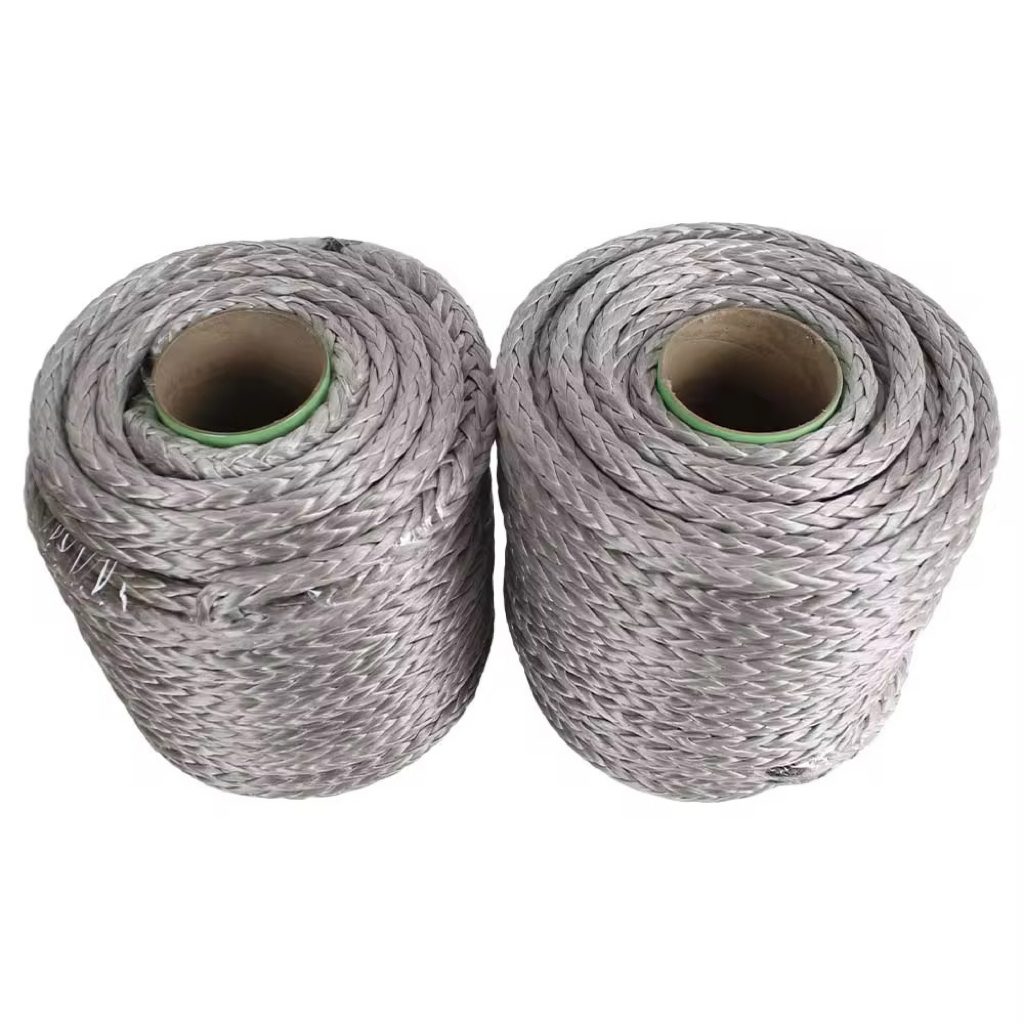

Pair of grey UHMWPE braided rope spools on cardboard cores, supply format
Grey UHMWPE braided rope on cardboard cores — an alternate colour and supply format supplied on request. Per-drum, cut-length and private-label drum are all available.

What this is

12-strand braided UHMWPE — replaced as winch / tow rope

A torque-free, floatable alternative to steel winch cable. The 12-strand braid gives high strength at a smaller diameter and absorbs little length under load — a static pulling line, not a kinetic rope. Sold as OEM or custom-manufactured to your specification.

Product overview
MaterialUHMWPE (Ultra-high-molecular-weight polyethylene)
Construction12-strand single-braid UHMWPE with PU coating
Typical diameter range6, 8, 10, 12, 14 mm standard; larger on request for tow / mooring
Supply formatPer drum or cut to length; custom coils and dyne-meter packages on request
ColorsBlack, blue, orange, red, yellow; custom colors on request
Packaging formatsPer-drum pack · Cut-length pack · Private-label drum / label
Ranges shown are catalog guidance. The quoted specification is the reference for the item offered.

How to specify it

The numbers that decide the build.

  1. Required breaking load per diameter
  2. Required diameter range
  3. Length per drum or total quantity
  4. Coating type and color
  5. Winch capacity / vehicle GVWR
  6. Quantity and destination

What the supplier will propose

The supplier will propose the diameter from the required breaking load, the drum length and coating from the end use, and the packaging from your destination and freight terms. Your job is to send the required load, the vehicle winch capacity and the quantity so the quotation reflects the build you need.

Quote UHMWPE Winch Rope — OEM & Custom Manufacturing

Send the required breaking load, diameter, drum or total length, and coating/color. The supplier will confirm the build and private-label options.

Request a Quote

Technical context

Useful before you quote.

Breaking Load, Safety Factor and Working Load — What the Numbers Mean

The difference between breaking load, working load and safe working load, why every cordage supplier is reluctant to publish a 'safe' number, and what the right question is to ask.

How to Choose Rope Diameter (Without a Strength Table)

Diameter is about handling, hardware fit and abrasion allowance as much as strength. Practical diameter ranges by job — and why 'thicker' is not always 'safer'.

Off-Road Recovery Basics: Rope Diameter, Winch Capacity and Safety Factor

How to choose a recovery rope and kit: vehicle weight to rope diameter, winch capacity to rope, and the safety-factor logic that separates a safe recovery from a dangerous one.
